NV17 Series Valves

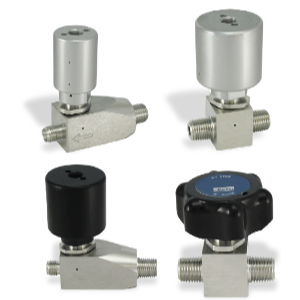

NV17 Series High Performance, High Cycle Diaphragm Valve

Value Proposition:

The Parker’s NV17 Series is comprised of economical, high-performance, high-cycle diaphragm valves ideal for a variety of applications. Typical usage includes shutoff, isolation, gas control panels, Change Over Systems, and analyzer sampling systems.

The NV17 AOP Series Air Actuated Diaphragm Valve is a derivative of the NV17 manually operated valve and is available in normally open (NO) or normally closed (NC) configurations. A choice of two line pressures are available: 250 psig and 500 psig.

Product Features:

• Internally threadless and springless
• High Cycle Life
• Compact Size
• Positive, Consistent Shutoff
• Metal-to-Metal External Seal
• Low Internal Volume
• Low Actuation Pressure for AOP Configuration
• Tamper-Resistant Bonnet Design

Contact Us for design and purchasing support.

Additional information

Series

NV17 – NV17 Series Valve
Type

AOP1 Air Operated, Normally Closed, AOP2 Air operated, Normally Closed, AOP3 Air operated, Normally Closed, AOPNO Air Operated, Normally Open, I Indicating Handwheel, L Lever, S Spin Handwheel
Body Material

S – 316L Stainless Steel
Connections

44FT – 1/4" Female NPT in and 1/4" Female NPT out, 44MF – 1/4" Male NPT in and 1/4" Female NPT out, 44MM – 1/4" Male NPT in and 1/4" Male NPT out, 44TT – 1/4" Compression in and out
Mounting Options

PEEK – PEEK(TM) Seat, VESP – Vespel(R) Seat
