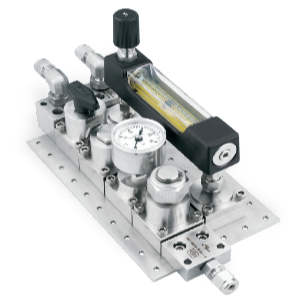

Intraflow™ Packaged Modular Sampler

Intraflow™ Basic Modular Systems, ISA/ANSI SP76.00.02

Value Proposition:

Parker IntraFlow™ substrate fittings have been developed specifically for analytical, lab and other complex general purpose instrumentation flow control systems. ISA/ANSI SP76.00.02 compliant, Parker IntraFlow™ fittings provide maximum flexibility with minimal space  requirements. All flowpaths, regardless of direction, are maintained on a single plane within the system as there are no lower level manifold blocks required. Contiguous fitting flow paths are intra-connected with slip fit pressure connectors, while a threaded pegboard provides connection force and rigidity when fittings are mounted with cap screws. System assembly couldn’t be simpler: a 5/32” hex head wrench is all you need to build with Parker IntraFlow™.

Features:

• System size is reduced as much as 75% compared with conventionally plumbed systems,
drastically reducing panel space, internal volume and purge times
• Compliant with ISA/ANSI SP76.00.02 open architecture standards
• Complex system assembly was never easier! No tube benders or cutters required, and no
welding. All that’s needed to assemble is a 5/32″ hex head wrench!
• Every component on your Parker IntraFlow™ system can be reused when upgrading
with emerging NeSSI Generation 2 & 3 technologies
• All flow paths are on the same plane: Parker IntraFlow™ eliminates lower level
manifolds to minimize system weight and leak potentials
• Whether mounting a fitting to the standard 1/8″ pegboard or a valve to the fitting, the same
10-32 x 1/2″ SHCS is the only screw required
